d&b audiotechnik AL60 (6) + V-GSUB (6) + D80 (2)

 60.000,00 excl. VAT

/set

Now available at an extra attractive bundle price including two D80 amplifier, making this set ready to deploy immediately. Fully tested, certified, and backed by Soundsaleโ€™s 3-month warranty.

The d&b audiotechnik AL60 is a compact, passive 2-way loudspeaker module featuring two 10″ neodymium LF drivers and a 1.4″ exit HF compression driver with a 3″ diaphragm, mounted to a dedicated wave shaping device and passive crossover network. It delivers precise coverage and exceptional clarity, ideal for both fixed installations and mobile sound reinforcement.

Paired with the d&b V-GSUB, an actively driven high-performance 18″ cardioid subwoofer powered by a single amplifier channel, this combination provides outstanding low-frequency control and punch. The V-GSUB is designed for ground-stacked applications and shares the same acoustical and visual design as the V-SUB, minus the rigging hardware.

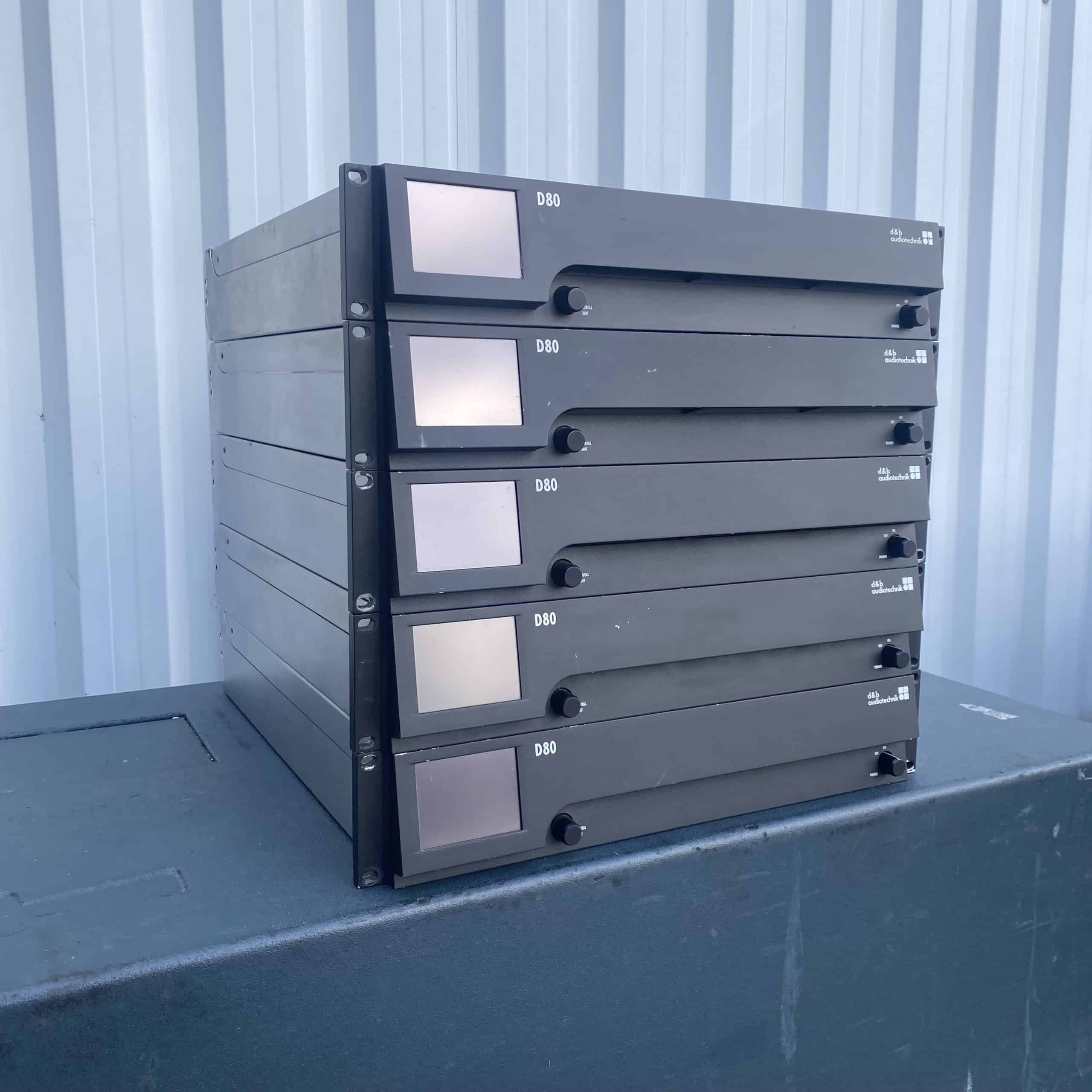

  • 2 x D80 amplifier;
  • 6 x AL60 loudspeaker;
  • 6 x V-GSUB including wooden lid;
  • 2 x Z5456 flying adapter;
  • 2 x Z5460 stand adapter;
  • 2 x Z5458 base plate;
  • 2 x custom pole mount bracket.
Brand

D&B Audiotechnik

Product category

Set

Speaker type

Passive

AL60

Components โ€“ 2 x 10" LF driver, 1 x 1.4โ€ exit compression driver with 3" coil
Power rating RMS/peak โ€“ 400/1800 W
Usable bandwidth โ€“ 60 Hz – 18 kHz
Maximum SPL – 138 dB
Impedance โ€“ 8 ฮฉ
Dimensions (W x H x D) โ€“ 700 x 322 x 356 mm
Weight โ€“ 23 kg

V-SUB

Components โ€“ 1 x 18" driver, 1 x 12" driver
Power rating RMS/peak โ€“ 800/3200 W
Usable bandwidth โ€“ > 37 Hz
Maximum SPL – 133 dB
Impedance โ€“ 8 ฮฉ
Dimensions (W x H x D) โ€“ 700 x 606 x 728/830 mm
Weight โ€“ 64 kg

D20

Channels – 4
Output power 4ฮฉ/channel – 1600 W
Output power 8ฮฉ/channel – 800 W
Height – 89 mm (2U)
Weight – 10.8 kg
